Predio rústicoActively building on it (as of Sep 2026)

Pisac lot

Predio Rústico Canalpa, Fracción N° 03

Pisac · Calca · Cusco, Peru · Sector Quechua, Valle Vilcanota

Cadastral unit (UC)219187

Partida (SUNARP)11093311

Area4,244 m²1.05 acres · 0.4244 ha

Perimeter294.56 m33 vertices

Elevation3,020.5–3,048.8 mabout 28 m of relief

Average slopeabout 30 %falls to the west

3D terrain model

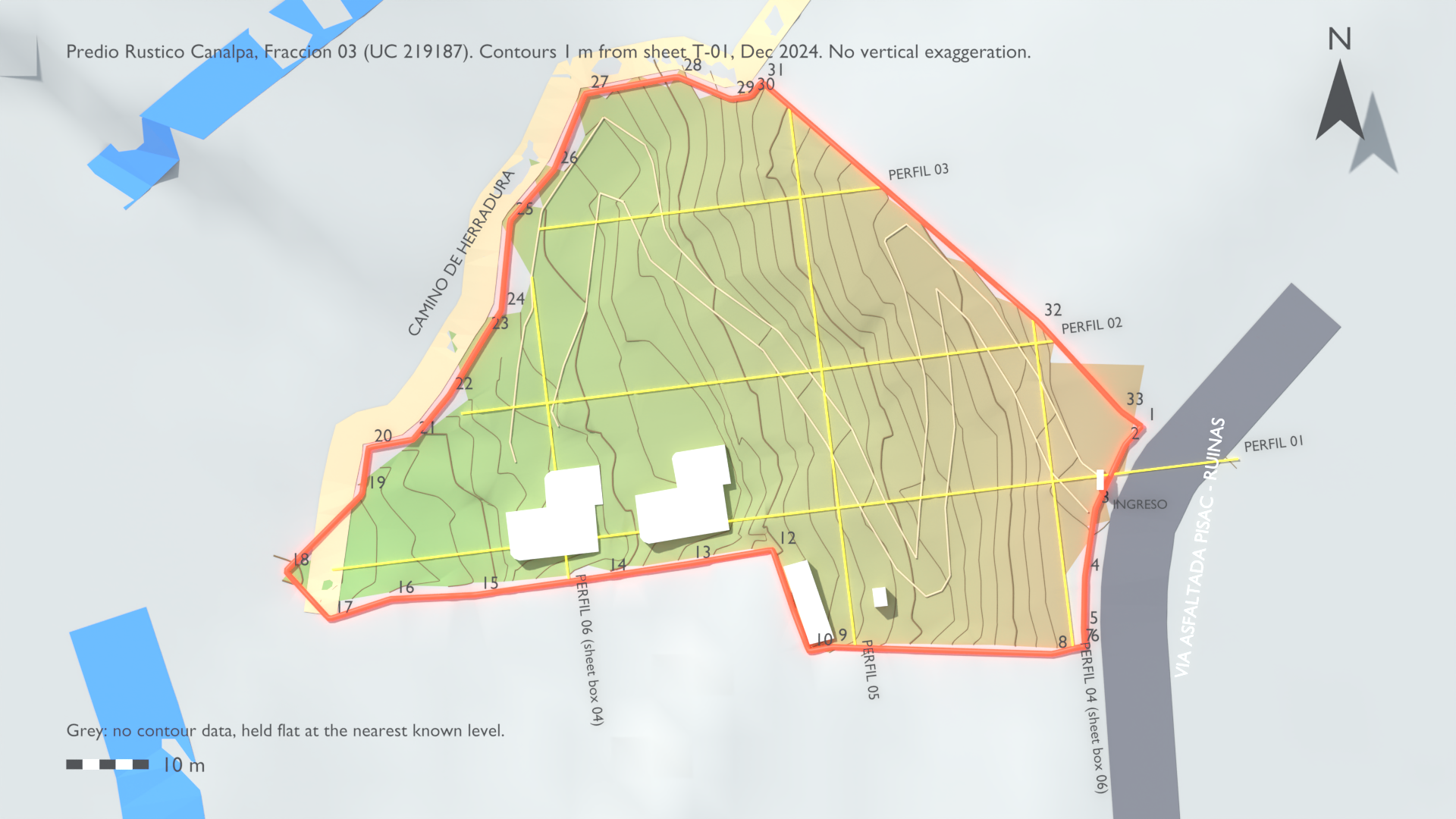

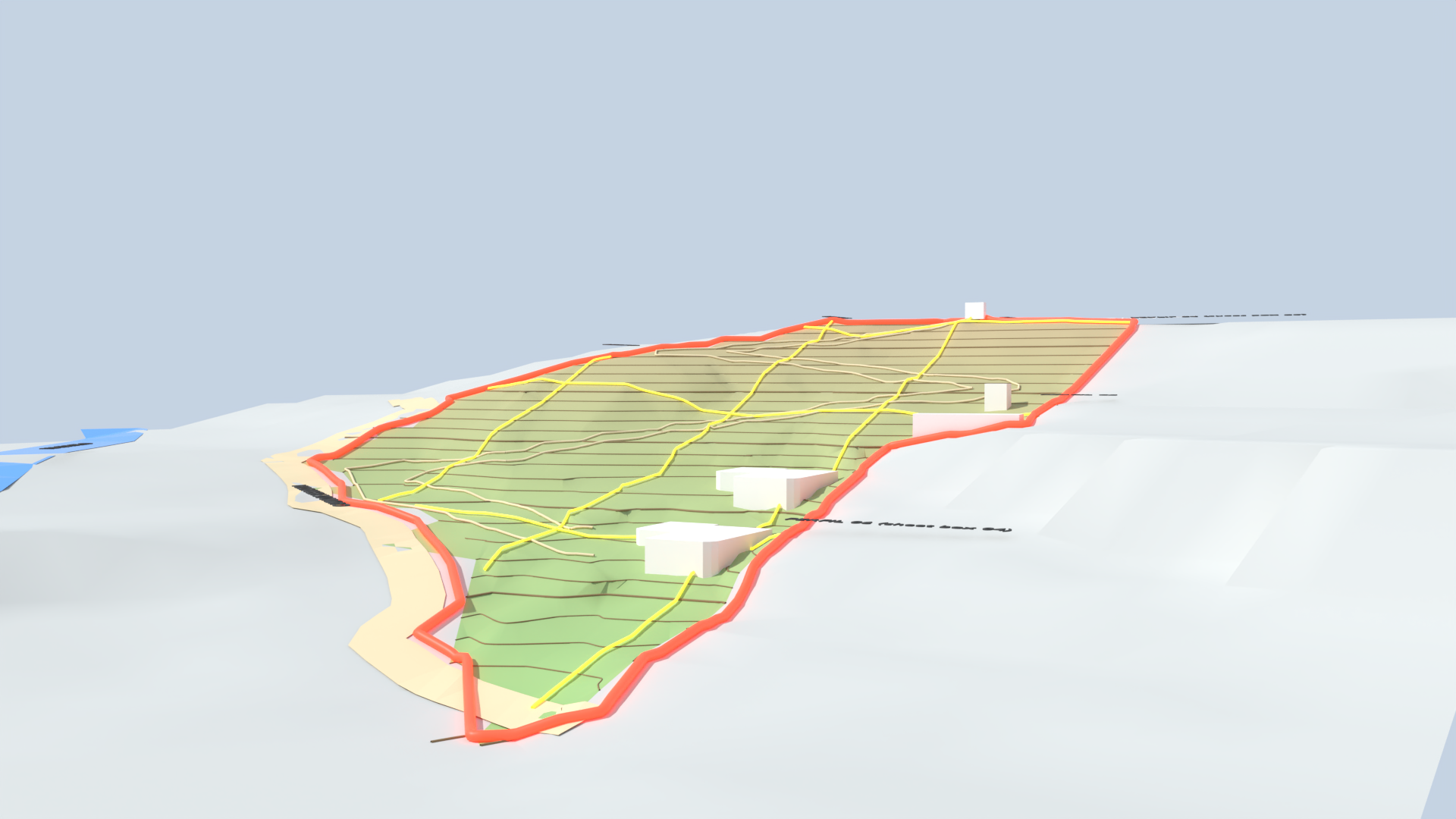

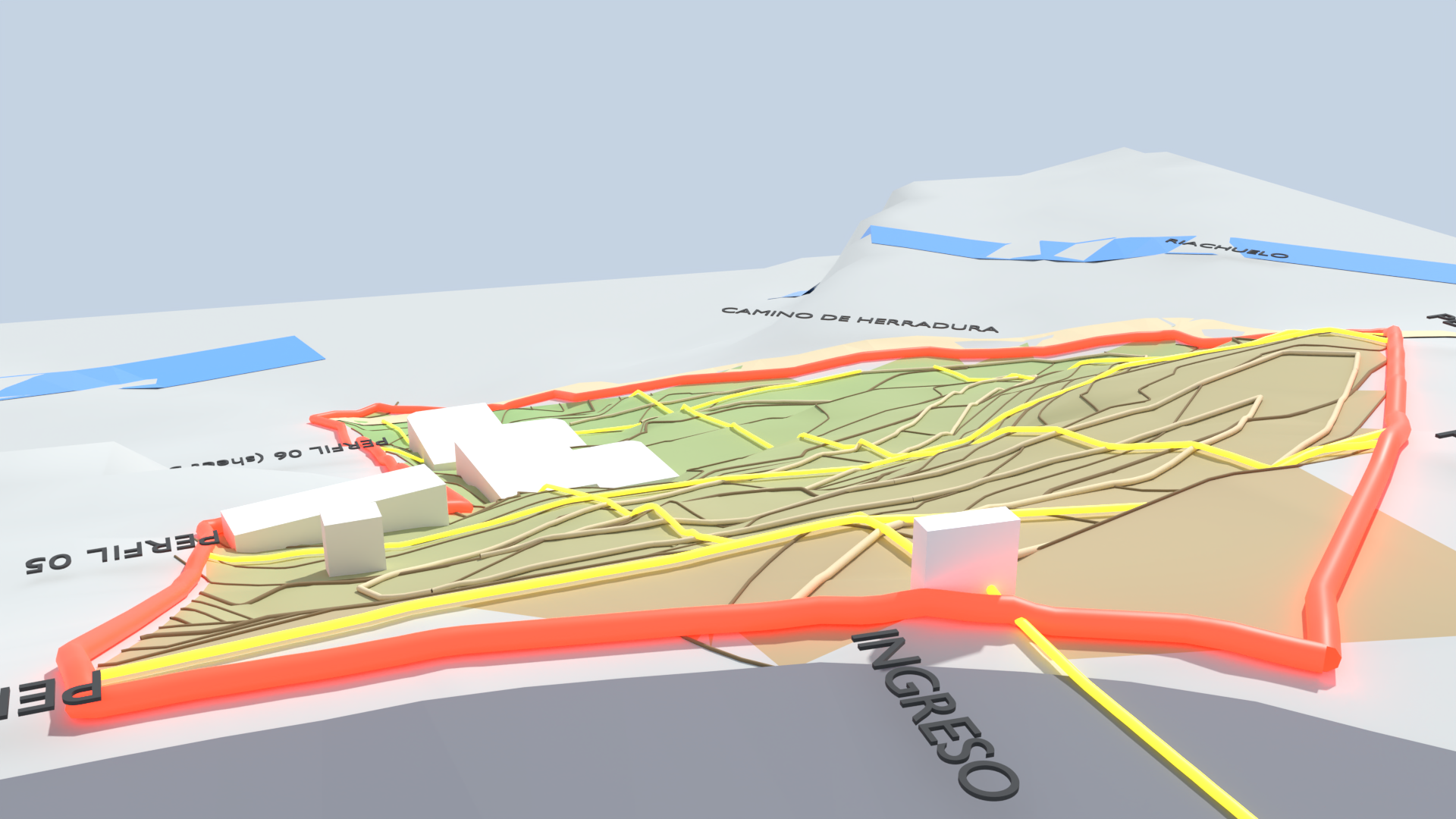

Built from the 1 m contours and six profiles on sheet T-01. 1 m up = 1 m across.

Loading 3D model (5 MB)

Legend

Red tube: legal boundary (33 UTM vertices)
Yellow lines: the six survey cross-section profiles
White boxes: houses, store and toilet (2.8 m tall)
Grey skirt: no survey data, held flat at nearest height
Blue: streams traced from the 1:1,000 location plan
Dark grey ribbon: paved road Pisac – Ruinas

How to read it

Terrain is exact inside the lot: 1 m contours and six profiles from sheet T-01. No vertical exaggeration.
Colour ramps from green (low, west) to brown (high, east).
Roads, path and streams outside the lot are placed from the U-01 location plan, not measured on site.

Drag to orbitScroll or pinch to zoomRight-drag or two-finger drag to pan

Renders and survey sheets

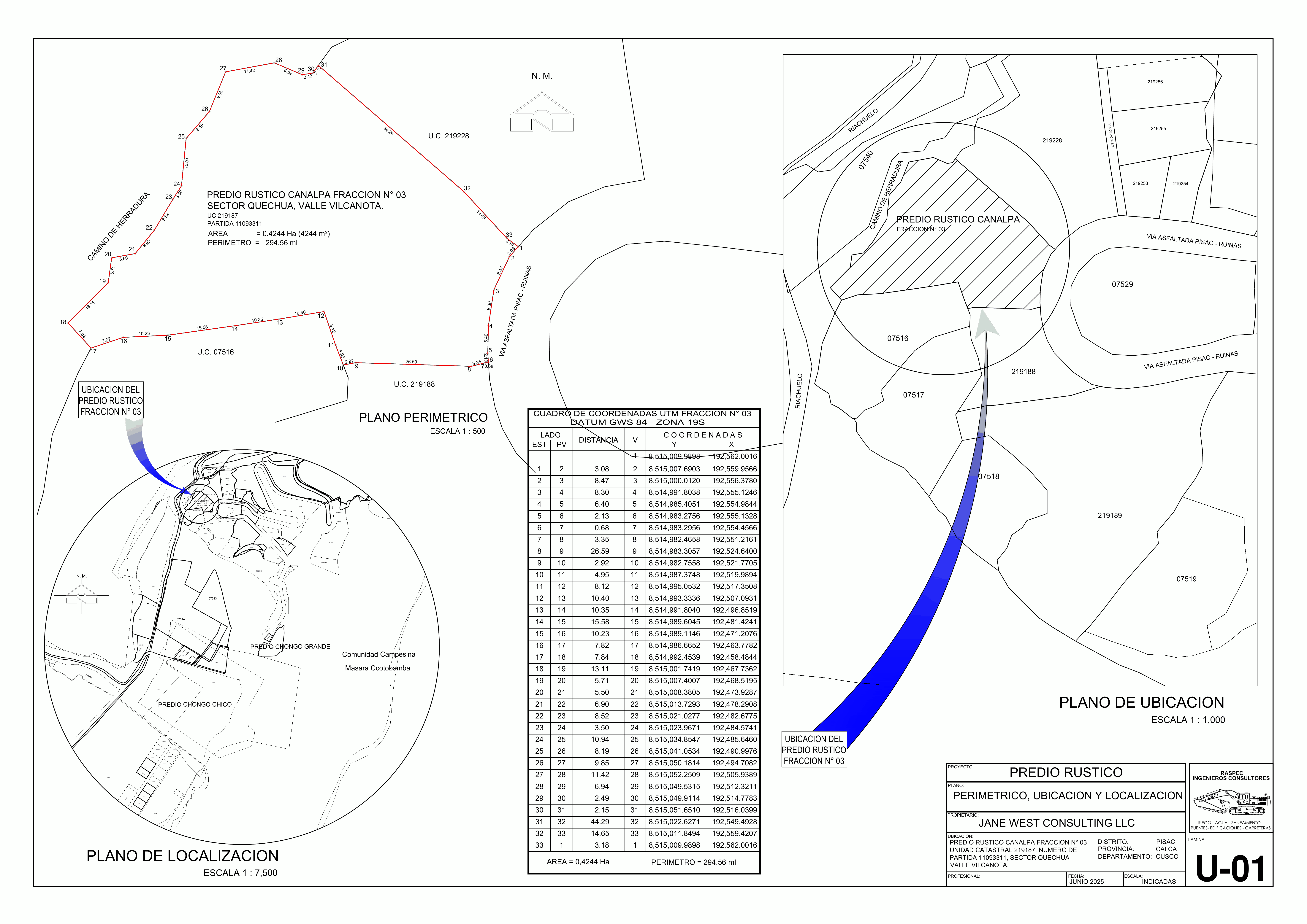

Four views of the model and the two survey sheets at 300 dpi. Click any image to open it full size.

Key facts

Read from sheets T-01 and U-01 and recorded in the property record. Nothing here is estimated beyond what the record states.

Identity

Name on plans: Predio Rústico Canalpa, Fracción N° 03
Cadastral unit (Unidad Catastral, UC): 219187
Registry entry (Partida Electrónica, SUNARP): 11093311
Sector: Quechua, Valle Vilcanota
District / Province / Department: Pisac / Calca / Cusco, Peru
Land class: Predio rústico (rural parcel)
Owners: Jacob Steeves and his wife
Titled entity on the drawings: Jane West Consulting LLC
How title is actually held (LLC or personal) still needs the SUNARP entry.
Surveyor: RASPEC Ingenieros Consultores
The 'Profesional' box is blank on both sheets: no engineer name, signature or CIP number.

Size and shape

Area: 4,244 m² = 0.4244 ha = 1.049 acres
Recomputed from the 33 coordinates (shoelace): 4,244.06 m². Matches the plan.
Perimeter: 294.56 m
Boundary vertices: 33
Bounding extent: About 103.5 m east–west by 69.8 m north–south
Longest sides: 44.29 m (vertex 31→32) and 26.59 m (vertex 8→9)
Approximate centre: UTM 19S E 192,512 N 8,515,008 · lat −13.416746, lon −71.839292 (WGS 84)

Topography

From sheet T-01: 1 m contours (index every 5 m) and six cross-section profiles. Elevations were read from the drawn geometry and checked against the printed profile tables.

Elevation range: About 3,020.5 to 3,048.8 m
Lowest at vertex 18 (west corner by the bridle path). Highest just inside the gate on the east edge.
Total relief: About 28 m
Direction of slope: Falls to the west. Best-fit plane 29.8 % (16.6°), downhill azimuth 271°.
Average slope: Mean 34 %, median 31 % (contour spacing). Along Perfil 01 inside the lot: 29 % (16°).
Contours crossing the lot: 3020 to 3048 m, 29 lines at 1 m interval
Paved road level at the gate: About 3,048.1 m. The lot edge is about 0.4 m above the road.
Steepest ground: 45–55 %, locally over 60 %, in the centre band uphill of the east house and store (3,036–3,043 m).
Buildable without major terracing (under 15 %): Roughly 450 m², about one tenth of the lot, in patches of 130 m² or less.
The two houses already sit on the two best benches (B and C).
Terrace pattern: Contour spacing alternates between tight risers and wider benches, the pattern of old agricultural terraces. No terrace or wall is labelled on the sheet.

Features and access

Gate: East boundary between vertices 2 and 3, straight off the Vía asfaltada Pisac–Ruinas.
Ground about 3,048.3–3,048.8 m, the highest point of the lot.
Internal track (trocha carrozable): Dirt vehicle track about 3 m wide, about 180 m of centreline, grades 10–13 %. Hairpins down from the gate to the north side of both houses.
House (west): About 11.8 × 11.5 m, L-shaped, 92.50 m² on the plan. Ground 3,026.4–3,029.0 m.
House (east): About 11.6 × 12.0 m, L-shaped, 92.75 m² on the plan. Ground 3,030.2–3,032.1 m.
The two 'CASA' area labels could be the other way round; drawn outlines measure 93.3 and 92.6 m².
Store (depósito): 6.1 × 10.2 m (about 30 m²) on the south boundary near vertices 9–10. Ground 3,035.4–3,037.5 m.
Toilet (baño): 1.9 × 2.4 m (about 3.6 m²). Ground about 3,038.5 m.
Blue outline on T-01: Unlabelled 47-vertex polyline, 3,958 m², mostly 1–5 m inside the legal boundary. Most likely the fence or wall found on site.
Paved road: Vía asfaltada Pisac–Ruinas along the east edge (vertices 1→6, 28.4 m). The lot sits on the outside of a hairpin bend.
Bridle path (camino de herradura): Along the north-west side (vertices 19→31, 82 m), a 4–7 m strip between the lot and UC 07540.
Streams (riachuelos): Two drawn on U-01. Neither touches the lot; one about 18–30 m west of vertex 18, one about 25–30 m north of vertex 27.
Trees, walls, terraces: None labelled on either sheet.

Surroundings

Adjacent cadastral units: UC 07516, UC 219228, UC 219188
Across the paved road: UC 07529, about 14 m away
Beyond the bridle path: UC 07540
Nearby named parcels: Predio Chongo Grande, Predio Chongo Chico
Nearby community: Comunidad Campesina Masara Ccotobamba
'Vía de acceso' on the location plan: A separate road north of the paved road, between lots 219253–219256. It is not the access to this lot.

Slope classes

From a 0.5 m grid ground model built from the contours and profiles. Resolution about ±5 % slope.

Slope	Area	Share
Under 10 %	about 160–240 m²	4–6 %
Under 15 %	about 440–500 m²	10–12 %
Under 20 %	about 900 m²	21 %
Under 30 %	about 2,000–2,100 m²	47–49 %
Over 50 %	about 700 m²	17 %

Flattest zones (under 15–20 %)

A. Road-side strip inside the gate
Along the east boundary (vertices 1–8) · 3,047–3,048.6 m · 5–10 %
About 150 m² under 15 %, 180 m² under 20 %. 5–10 m wide.
B. Bench at and north of the east house
E 192,498–192,512 · N 8,515,000–8,515,015 · 3,030–3,032 m · 10–20 %
About 130 m² under 15 %, 230 m² under 20 %. Largest single flat patch.
C. Bench north of the west house
E 192,485–192,495 · N 8,515,018–8,515,040 · 3,028–3,031 m · 14–20 %
About 110 m² under 15 %, 240 m² under 20 %.
D. Small bench where the track hairpins
E 192,530–192,540 · N 8,515,025–8,515,035 · 3,044–3,045 m · About 20 %
About 60 m² under 20 %.

Neighbours by boundary edge

From the U-01 location plan. Edge numbers refer to the boundary vertices.

Edges	Length	Side	Adjoining
1→6	28.4 m	East	Vía asfaltada Pisac–Ruinas. UC 07529 lies across the road, about 14 m away.
6→10	33.5 m	South-east	UC 219188
10→17	67.5 m	South	UC 07516
17→19	21.0 m	West corner	Outer line of the UC 07516 / 07517 block. The sheet does not say which.
19→31	82.1 m	North-west	Camino de herradura, with UC 07540 beyond it.
31→1	62.1 m	North-east	UC 219228

Open items

Questions the drawings do not answer yet.

How title is actually held (LLC vs. personal) needs the SUNARP entry 11093311.
Zoning and archaeological (Ministerio de Cultura) restrictions for the Pisac–Ruinas corridor.
Ask the surveyor to correct sheet T-01: the third profile box is titled 'PERFIL 02' instead of 'PERFIL 03', and the boxes 'PERFIL 04' and 'PERFIL 06' are swapped against the plan lines.
Confirm what the blue outline on T-01 represents (fence, wall or occupied limit) and why it lies up to 3.6 m outside the legal boundary near vertex 28.
Confirm the value of the short odd-coloured contour piece at vertices 33–1 (assumed 3049).
Confirm which cadastral unit (07516 or 07517) adjoins edges 17→19.

Map

OpenStreetMap, centred on -13.416746, -71.839292. The red polygon is the legal boundary from the 33 UTM vertices on sheet U-01. Hover a vertex for its number and ground level.

Loading map…

Open in OpenStreetMap Open in Google Maps

Downloads

Source files. The survey PDFs are AutoCAD vector plots.

Owners: Jacob Steeves and his wife. Titled entity on the drawings: Jane West Consulting LLC. Surveys by RASPEC Ingenieros Consultores, December 2024 (T-01) and June 2025 (U-01).
